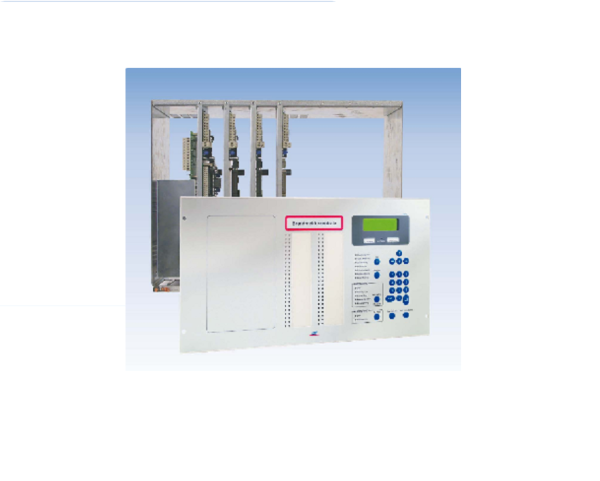

The Extinguishing Control Panel Series LC216 is an
extended Fire Detection Control Panel Series BC216
with additional functions for the control of extinguishing
systems. Nevertheless, all functions of the fire detec
–
tion control panel remain intact. Therefore, a combined
use as fire detection and extinguishing control panel is
provided as standard.
The Extinguishing Control Panels Series LC216 compri
–
se the following types of control panels:
•
The Extinguishing Control Panel LC216-1 for an extin
–
guishing system with one flooding zone according to
EN 12094-1 or with up to 8 flooding zones without
compliance to EN 12094-1.
•
The networked Extinguishing Control Panel LCnet216
for up to 127 extinguishing systems. The LCnet216
consists of several sectional control panels, which
are interconnected via the Global Security System
Network GSSnet and thereby form a decentralised
extinguishing control system. Each extinguishing sys
–
tem can control up to 32 flooding zones, and each
LCnet sectional control panel can administrate up to
8 flooding zones. A maximum of 127 flooding zones
can be controlled by an Extinguishing Control Panel
LCnet216.
The Extinguishing Control Panel Series LC216 fulfils
all compulsory requirements as well as the options of
EN 12094-1, EN 54-2 and EN 54-4 and is VdS certi
–
fied.
The networked Extinguishing Control Panel LCnet216
can be easily implemented with a redundant design of
the extinguishing control.
