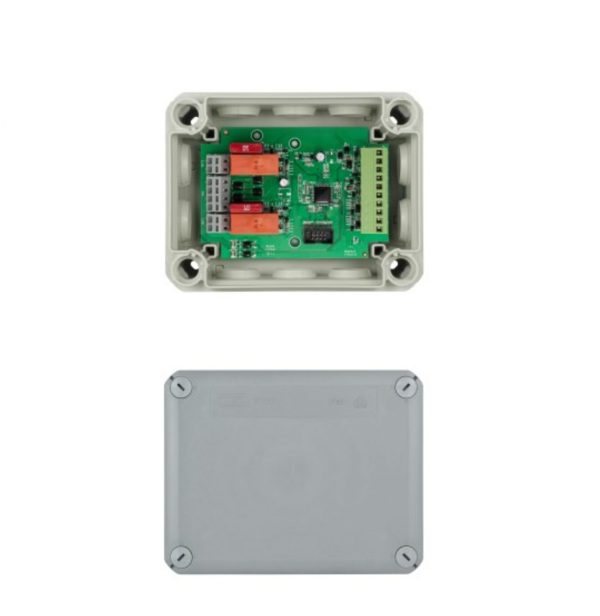

ماژول/اینترفیسINPUT/OUTPUT MODULE MIO 22LS

POWER SUPPLY:
۲۴ V DC ± ۲۵%
STANDBY CURRENT:
۲۰۰ µA
ALARM CURRENT:
۲۰۰ µA
SHORT-CIRCUIT ISOLATOR:
yes
NUMBER OF OUTPUTS:
۲
RELAY CONTROL OUTPUTS:
Voltage output:
DC contact load capacity: 6 A / 30 V / 180 W
TYPE OF MONITORING:
resistance measurement
NUMBER OF INPUTS:
۲
INPUT FUNCTION:
active, inactive, short-circuit, break
INPUT CONTROL:
yes
INPUT INITIATION:
parametrising trough resistance (22kΩ)
FAIL-SAFE:
yes
CASING TYPES:
O/S
PROTECTION LEVEL:
O – IP 66 / S – IP  ۶۷
DIMENSION:
O – ۱۵۰ x 116 x 67 mm / S – ۱۸۷ x 118 x 67 mm
WEIGHT:
O – ۲۵۰ g / S – ۲۵۰ g
WORKING TEMPERATURE:
from -25° C to 70° C
PRODUCT CODE:
O – FSM0000015 / S – FSM0000016
