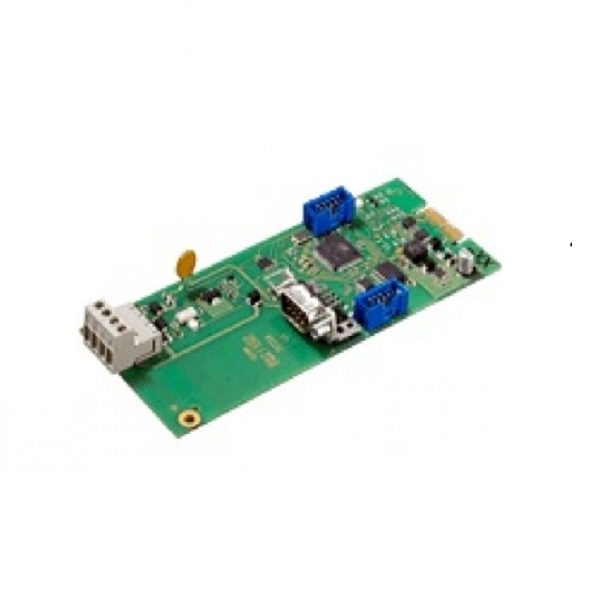

۲۱۱۱۱۹ – Serial Interface SIF601-1

The Serial Interface SIF601-1 facilitates the extension of a Fire Detection Control Panel Series BC600 with a galvanically isolated RS232C interface or, alternatively, with an additional INFO bus interface. The usage of the interface as well as the baud rate can be parameterised

The RS232C interface can be used to connect a protocol printer. The INFO bus can be used for connecting additional INFO bus devices if the INFO bus interface on the central processing board is not sufficient. By defining filters, the output of events can be limited

توضیحات

The Serial Interface SIF601-1 facilitates the extension of a Fire Detection Control Panel Series BC600 with a galvanically isolated RS232C interface or, alternatively, with an additional INFO bus interface. The usage of the interface as well as the baud rate can be parameterised

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Current consumption : at 24V typ. 14mA

for the RS232 interface typ. additional 4.5mA

for the INFO bus typ. additional 22mA

Output current : 24VDC max. 180mA

Interface RS232C, galvanically isolated, up to 57.6 kbaud

INFO bus, up to 4800 baud

Signal lines RxD, TxD, CTS/DTR

Connection type

RS232 9-pole D-SUB plug or 10-pole flat cable connector

INFO bus 2-pole pluggable screw terminal

Auxiliary voltage : 24VDC 2-pole pluggable screw terminal

Ambient temperature : -20°C to +60°C

(Dimensions L × W × H : 160 × ۶۵ × ۲۰ (mm

Weight : 50g
