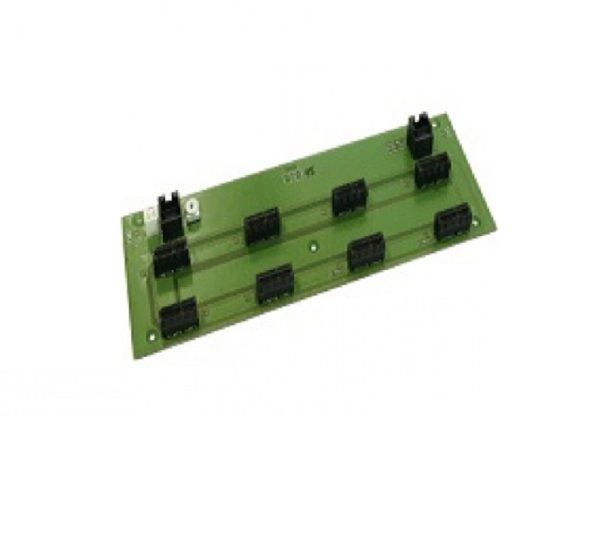

211151 – Backplane BPL608-1

The Backplane BPL608-1 is used to expand a Fire Detection Control Panel Series BC600 by 8 additional mounting positions for function modules. The Backplane BPL608-1 can be used in Control Panels BC600-16xxx in the large wall-mount cabinet. Via the backplane, the function modules are powered and the data connection to the central processing board is established

The backplane is provided with a connector for the connection of the supply voltage and with two connectors for the connection of the system bus. By means of an address switch, the address of the backplane can be set in the range 1 … 8
