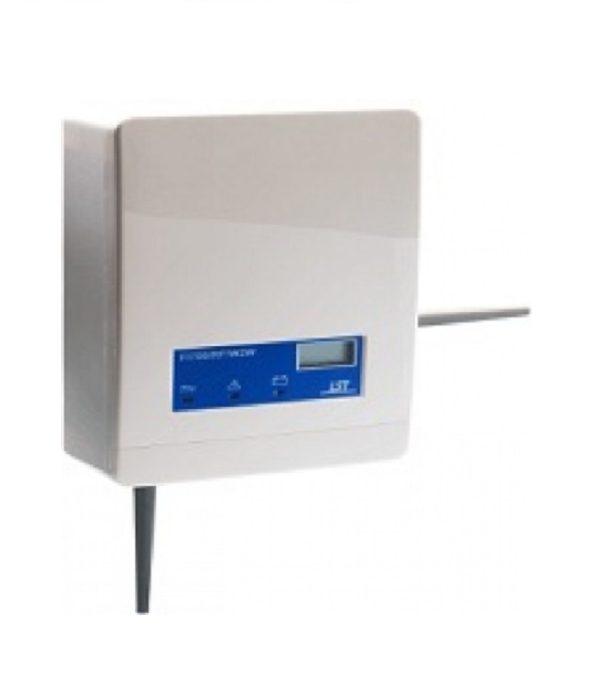

249261 – RF Interface/700 FI700/RF/W2W

The RF Interface FI700/RF/W2W serves as a gateway between a Fire Detection Control Panel Series BC600 or Series BC216 and wireless devices Series FI700/RF. The RF interface communicates with the control panel via the ADM loop with Labor Strauss/700 protocol

The RF interface can administrate up to 32 automatic detectors, manual call points, modules or signaling devices. The gateway itself occupies one module address on the loop. The device addresses are set either through the operation menu of the RF interface or through the PC software WirelEx. In addition to the parameterization of the RF system, this program also allows the analysis and graphical indication of signal strength and transmission quality

The range of up to 200m can be increased to more than 3km by using RF expanders. The RF interface can be linked with a maximum of 7 RF expanders

Menu operation by means of buttons and display

Configuration through menu or PC software

(Status indication via 3 LEDs (communication, fault, battery replacement

Integrated dual-isolator

2 orthogonal antennas for safe radio communication

7 bi-directional data channels

High range of radio transmission
