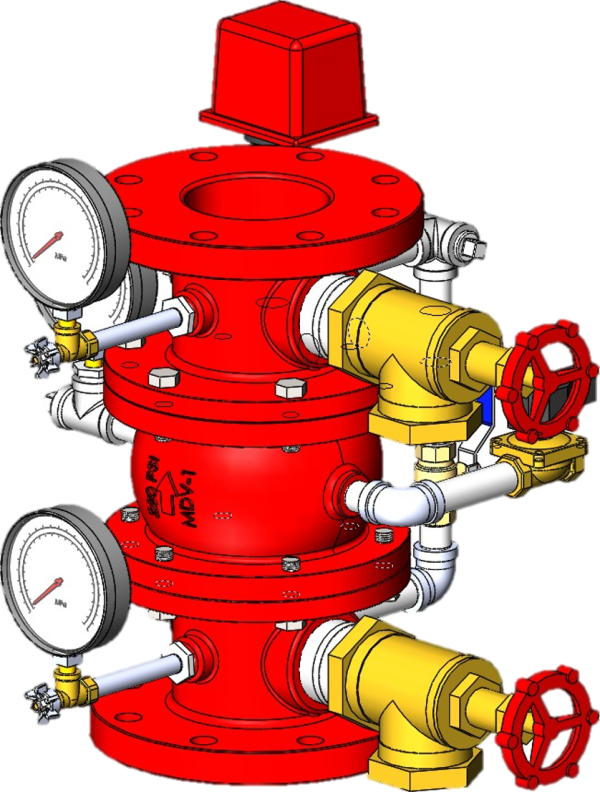

Deluge Valve

توضیحات

MASTECO introduces innovatively designed deluge valve

providing long service life, simple installation and easy
operation with compact size.
Deluge valve is a system control valve in deluge system.
Deluge valve protects areas such as power plant,
transformer installation, storage tank, conveyor protection
and other industrial applications.
When the detection system is activated, deluge valve is
opened by pneumatic, hydraulic or electrical signal. Then,
water is discharged through the sprinkler heads or spray
nozzles in the system. With foam system, deluge valve
can be used to protect aircraft hangar and storage tank
containing inflammable liquids.
ویژگی ها

ویژگی ها

Material
· Body: Ductile Iron
· Tube Diaphragm: EPDM
· Disk: Stainless Steel
· Disk Guide: Stainless Steel
Specifications
· Color: Red
· Size: 3″,4″,6″,8″,10″
· Working Pressure: 250 psi (17.2bar)
· Test Pressure
-Body: 1,000 psi (69.0bar)
-Diaphragm: 500 psi (34.5bar)
· Working Temperature: 32˚F to 181.4˚F
(۰˚C to 83˚C)
