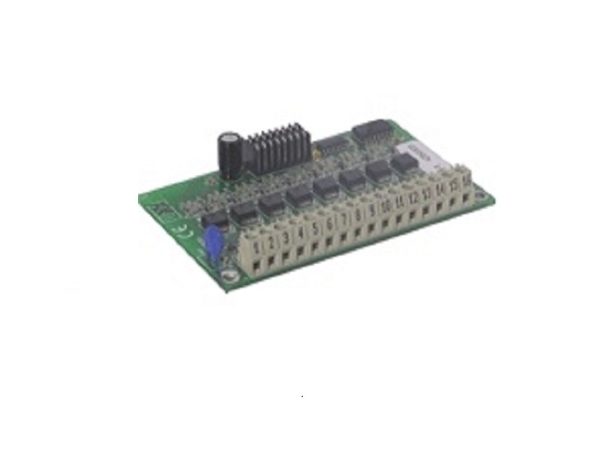

The Detector Zone Extension MGE8-1 is used to extend a Fire Detection Control Panel Series BC016 by 8 detector zones in addressable conventional technology
detector lines in addressable conventional technology, that can be individually configured as detector zone for manual call points, automatic fire detectors with or without alarm verification, technical messages and fault detectors with or without self-resetting property
Individual detector identification for up to 64 addresses per detector line in conjunction with optional address modules
Detector lines monitored for wire breakage, short circuit and earth fault
Freely parameterisable allocation of the detector lines for activating transmitting devices, actuations an alarming devices
Current consumption : at 24V typ. 32mA (8 zones terminated, without detectors
Line voltage : typ. 20.0V
Line current : typ. 3.8mA
End-of-line resistance : 5.6kOhm/3.3kOhm
Line resistance : max. 50 Ohm per core
Ambient temperature : -5°C to +50°C
(Dimensions L × W × H : 100 × ۶۵ × ۱۵ (mm
Weight : 80g
