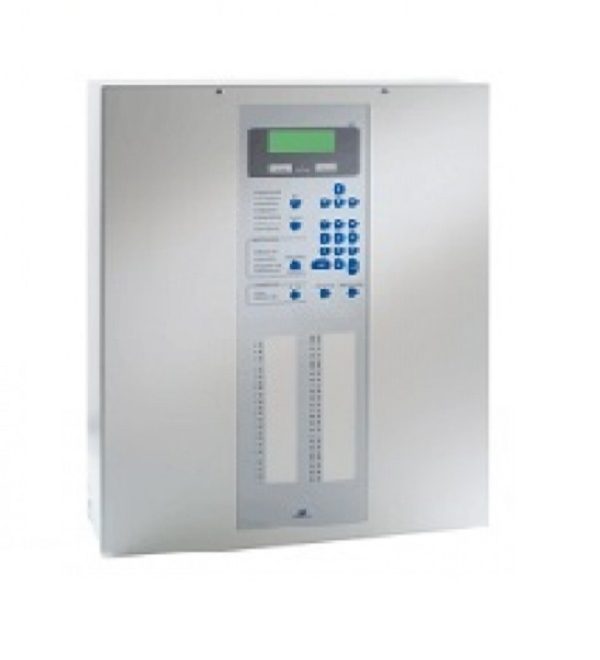

214056 – BCnet Control Panel with Operation BC216-2/INT1

The BCnet Control Panel BC216-2/INT1 with its modular design and integrated display and operating field is suitable for use in a Fire Detection Control Panel BCnet216. Fire, fault and status detectors as well as control elements and alarming devices can be connected to up to 2 ADM loops in analogue technology or to a maximum of 16 detector zones in addressable conventional technology or to a combination thereof, depending on the optional modules used

The sectional control panel is installed in a wall-mount case made of powder coated steel sheet which is prepared for accommodating 2 function modules (Conventional Detector Interface GIF8-1, Loop Interface LIF64-1 or LIF128-1), one Fire Brigade Interface FWI2-1, one Fire Brigade Interface Additional Board FWZ2-1, one LED Display Field LAB48-x, a Serial Interface Module SIM216-1 and further optional modules as well as stand-by batteries 2 × 12V/max. 22Ah

A summary of the extensive functions and features is provided in the description of the Fire Detection Control Panel BCnet216, Art. No. 219998T. The labels of display and operating elements as well as the displayed and printer texts are in English language
