245416 – Manual Call Point/Yellow/Conv/Handausl. HM/1/11/17/02

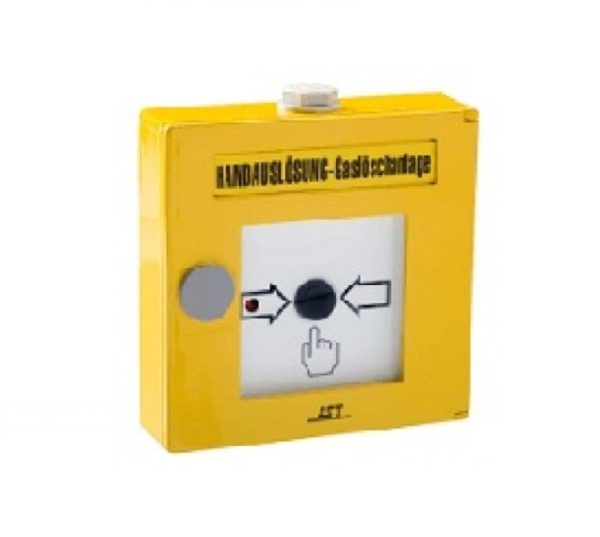

The Manual Call Point HM/1/11/17/02 is used as electrical activation device for gas and water spray extinguishing systems and is designed for application in addressable conventional technology. The manual call point is accommodated in a yellow aluminium die-cast housing and is tested in accordance with the standards EN 54-11/B and EN 12094-3

Robust aluminium die-cast housing with a door aperture angle of more than 180°

Inscription field ‘HANDAUSLÖSUNG-Gaslöschanlage’, exchangeable

Optical activation indication by means of LED

Latching push button

Easy to replace standardised glass plate

(Detector housing can be opened with key SCHL-HFM/HM (not included

Individual detector addressing by connecting an optional address module

Plenty of room for cabling

Increasing the protection class to IP54 by using the optional Protection Kit for Manual Call Point
