Manual Call Point/Blue/700/RF/ HM/5/73/02/00

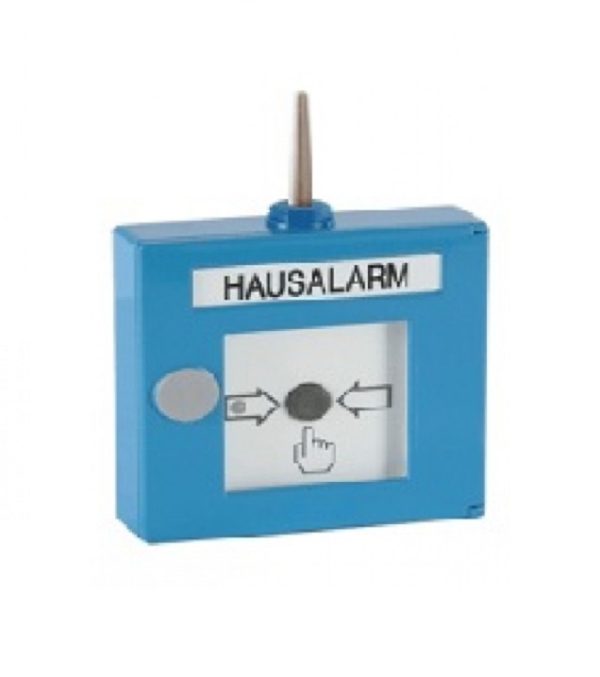

The wireless manual call point according to EN 54-11/B is accommodated in a blue aluminium die-cast housing and communicates with Fire Detection Control Panels Series BC216 and BC600 via an RF Interface FI700/RF/W2W. Alternatively, the Conventional RF Expander FI700/RF/CWE serves as gateway in a conventional fire detection system

Two batteries are accommodated in the manual call point. Normally, the detector is powered by the main battery. In the event of a failure of the main battery, the secondary battery powers the detector. The two-coloured LED indicates the activated condition of the detector as well as further operating conditions. The wireless detector is particularly suitable for applications where cabling is impossible or uneconomical. The mounting material and both batteries are included in the delivery

Robust aluminium die-cast housing with a door aperture angle of more than 180°

(Operating instructions by symbols (EN 54-11

Function marking “HAUSALARM”, replaceable

Latching push button

Long battery life of 5 years

High range of radio transmission

During the learning phase, the address can be set in the range 2 to 240 by means of the configuration

software WirelEx

Easy to replace standardised glass plate

(Detector housing can be opened with key SCHL-HFM/HM (not included

Increasing the protection class to IP54 by using the optional Protection Kit for Manual Call Point

HFM/HM-ZS-IP54
