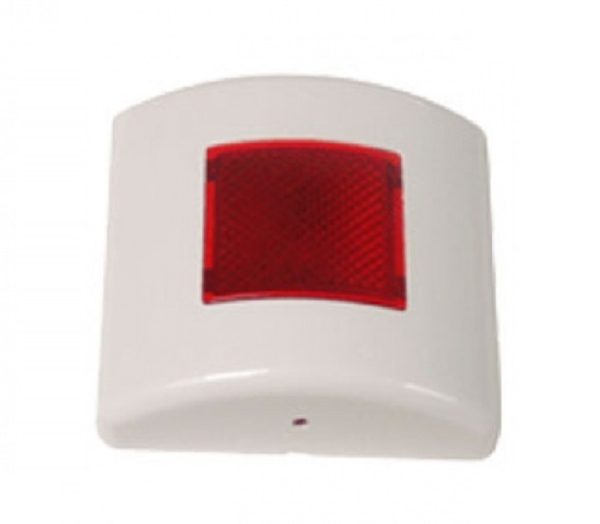

Remote Indicator700 FI700PA – 251010

Remote Indicator700 FI700PA – 251010

The Remote Indicator FI700/PA is integrated into an ADM loop with Labor Strauss/700 protocol and al- lows the fire detection control panel to control the remote indication. As the activation can be freely para- meterised in the control panel, the remote indicator can indicate the activation of any combination of detec- tors. With that, a common display can be implemented with simple means. The integrated dual-isolator dis- connects the loop at short circuit on the loop line

دسته: , , ,
توضیحات

High-power LED

Module address can be set in the range 1 to 240 by means of Programming Unit FI750/PU Optional AUTO-addressing when combined with a compatible fire detection control panel Plastic case with red cap

Surface mounting or flush mounting on 55/60mm installation bo

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Operating voltage: supplied through detector line voltage

(Current consumption:typ. 90µA (quiescent

Alarm temperature : typ. 78°C

Operating temperature: max. +60°C

(Ambient temperature : -30°C to +70°C (continuous operation

(Relative humidity: max. 95% (no condensation

(Protection class: IP40 (IP42 with silicone gasket

(Dimensions Ø × H: 106 × ۴۶ (mm

Colour : white

Weight :80g
