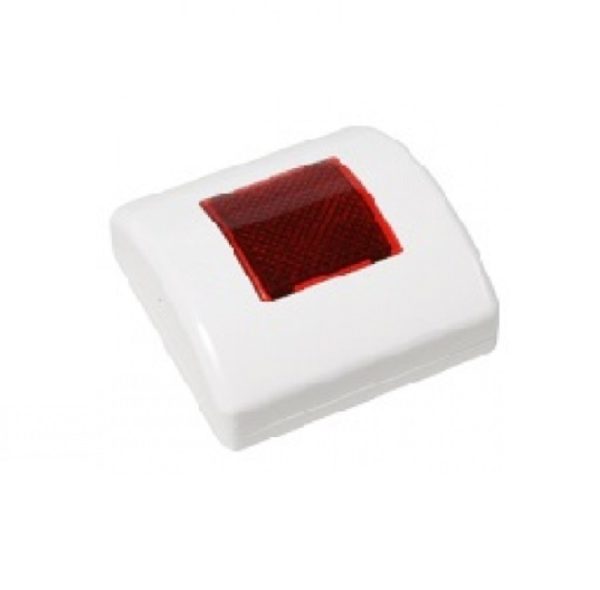

The RF Remote Indicator FI700/RF/PA-2 is designed for the remote indication of a detector activation in the wireless fire detection system FI700/RF. As the activation can be freely parameterised, the remote indicator can indicate the activation of any combination of detectors. The indicator communicates with a fire detection control panel in loop technology (Labor Strauss/700 protocol) via the Loop RF Interface FI700/RF/W2W. Alternatively, the Conventional RF Expander FI700/RF/CWE serves as gateway in a conventional fire detection system
The RF remote indicator is particularly suitable for applications where cabling is impossible or uneconomical. The indicator is integrated in a white housing and is designed for indoor mounting. Both batteries are included in the delivery
High-power LED
High range of radio transmission
During the learning phase, the address can be set in the range 2 to 240 by means of the configuration
Software WirelEx
Plastic case with red cap
Power supply : lithium battery CR123 as main battery
lithium battery : CR2032 as secondary battery
(Batterie lifespan approx. 5 years (main battery
(approx. 2 months (secondary battery, after failure of the main battery
Frequency band : 868MHz
(Radio transmission : range max. 200m (free air
Ambient temperature : -10°C to +55°C
Protection class : IP42
(Dimensions W × H × D : 80 × ۸۰ × ۳۲ (mm
Colour : white
Weight : 60g
