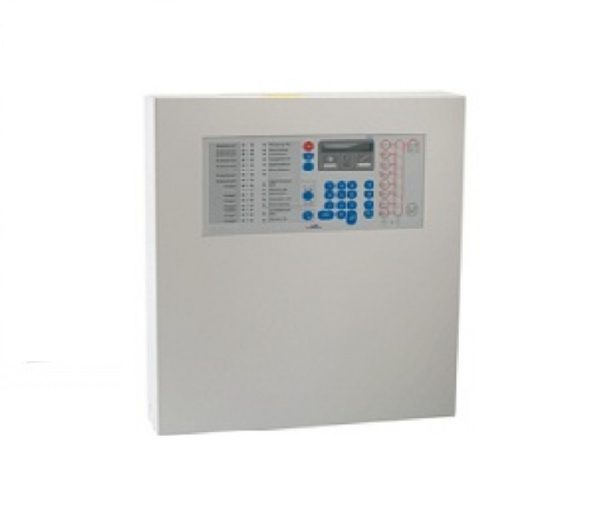

210 122 – Fire Detection and Evacuation Panel BC016-2/INT1

The design of the Fire Detection and Evacuation Panel BC016-2/INT1 is identical with the Fire Detection Control Panel BC016-1/INT1, but includes additional 10 buttons in the display and operating field for the direct control (i.e., activation and deactivation) of a maximum of 8 evacuation circuits. With that, different country-specific requirements (e.g., NEN 2575) can be fulfilled

Administration of up to 16 detector zones for manual call points, automatic fire detectors with or without alarm verification, technical messages and fault detectors with or without self-resetting property

Administration of 3 transmitting devices, 9 alarming devices and 16 actuations

INFO field with a 2 line by 16 character text display providing information about all current events

Info button for additional information on the current events

16 double LEDs (left hand side: red, right hand side: yellow), automatically assigned to the parameterized zones and displaying the activation as well as the disablement or fault condition of the zones

Alarm delay with dead-man’s handle controlled by internal timer which can be set separately for each day of the week

Start and end date of Daylight Saving Time according to EU directive or freely parameterisable

Non-resettable electronic event counter
