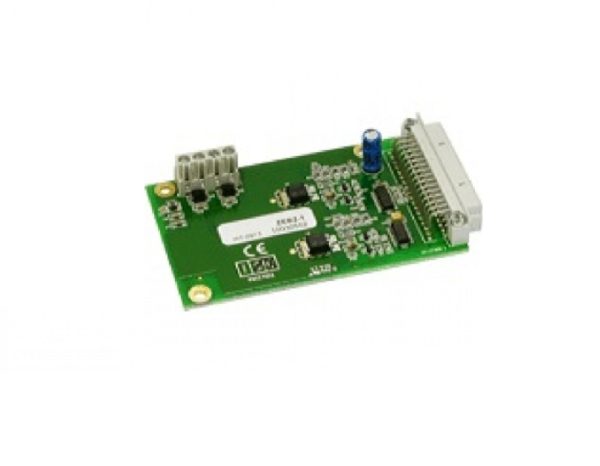

۲۱۰۲۱۰ – Zone Extension Board BC06 ZEB2-1

The Zone Extension Board ZEB2-1 extends the Fire Detection Control Panel Series BC06 by 2 detector zones in conventional technology

توضیحات

detector lines in conventional technology, that can be individually configured as detector zone for manual call points, automatic fire detectors with or without alarm verification and fault detectors with or without self-resetting property

By means of the optional MCP Coding Module MCM1-1, alarms from automatic detectors and manual call points, which are both connected to the same detector line, can be distinguished

The type of line terminator (end-of-line resistor or end-of-line capacitor) can be selected separately for both zones of the Zone Extension Board ZEB2-1 via parameterisation at the control panel

Monitoring of detector lines for wire breakage, short circuit and earth fault

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Current consumption at 24V : typ. 14mA (end-of-line resistor 5.6kOhm

(typ. 7mA (end-of-line capacitor 47μF

(Line voltage : typ. 20V (end-of-line resistor 5.6kOhm

(typ. 23V (end-of-line capacitor 47μF

(Line current : typ. 3.7mA (end-of-line resistor 5.6kOhm

(typ. 0mA (end-of-line capacitor 47μF

Line termination : 5.6kOhm or 47μF

Line resistance : max. 50 Ohm per core

Ambient Temperature : -5°C to +50°C

(Dimensions L × W × H : 103 × ۵۸ × ۱۵ (mm

Weight : 34g
