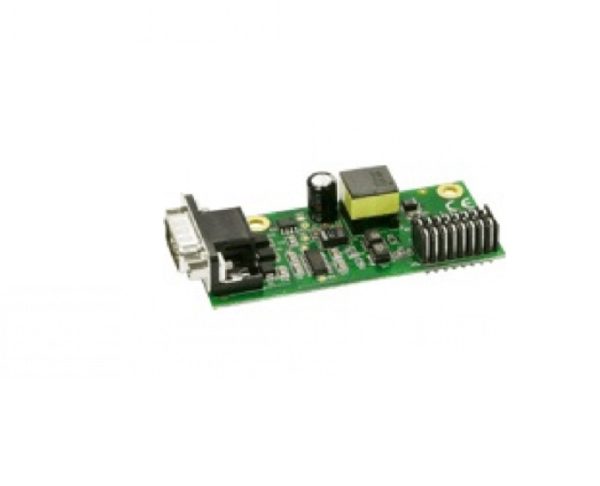

The Serial Interface Module SIM06-1 extends the Fire Detection Control Panel Series BC06 by one galvanically isolated RS232C interface for the connection of a serial protocol printer
The Serial Interface Module SIM06-1 extends the Fire Detection Control Panel Series BC06 by one galvanically isolated RS232C interface for the connection of a serial protocol printer
Interface RS232C, galvanically isolated
Data transfer lines RxD, TxD
Baudrate 1200, 2400, 4800 baud
Type of connection : D-SUB connector, 9-pin
Ambient temperature : -5°C to +50°C
(Dimensions L × W × H : 88 × ۳۵ × ۱۷ (mm
Weight : 32g
