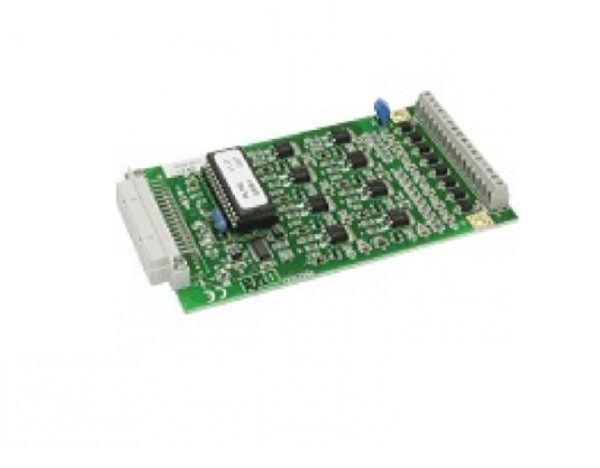

۲۱۴۰۲۰ – Detector Interface GIF8-1

The Conventional Detector Interface GIF8-1 supports 8 detector zones in addressable conventional technology in Fire Detection Control Panels Series BC216

توضیحات

detector lines in addressable conventional technology, that can be individually configured as: detector zone for fire alarm for the connection of manual call points as well as automatic detectors with or without alarm verification, detector zone for technical messages for the connection of surveillance and status detectors, detector zone for fault messages for the connection of fault detectors and detector zone for special functions (e.g., for control commands)

Individual detector identification for up to 64 addresses per detector line in conjunction with optional address modules

Detector lines monitored for wire breakage, short circuit and earth fault

Freely parameterisable allocation of the detector lines for activating transmitting devices, actuations and alarming devices

Independent CMOS processor to ensure the alarming capability even at system failure of the control panel

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Current consumption : at 24V typ. 50mA (8 zones terminated, without detectors

Line voltage : typ. 20.0V

Line current : typ. 3.7mA

End-of-line resistance : 5.6kOhm

Line resistance: max. 50 Ohm per core

Ambient temperature : -5°C to +50°C

(Dimensions L × W × H : 132 × ۷۴ × ۱۳ (mm

Weight : 80g
