Control Module 1xRel/Batt/ FI700/RF/BATT

The battery-operated wireless control module FI700/RF/M1REL/BATT provides a dry relay output as well as a non-monitored voltage output (12/24VDC, 40/20mA) for the actuation of external devices. With that, ancillary devices can be easily integrated into a fire detection system with radio transmission, without monitoring the line. The module communicates with a fire detection control panel in loop technology (Labor Strauss/700 protocol) via the Loop RF Interface FI700/RF/W2W or via the Conventional RF Expander FI700/RF/CWE. Alternatively, the Conventional RF Expander FI700/RF/CWE serves as gateway in a conventionalfire detection system

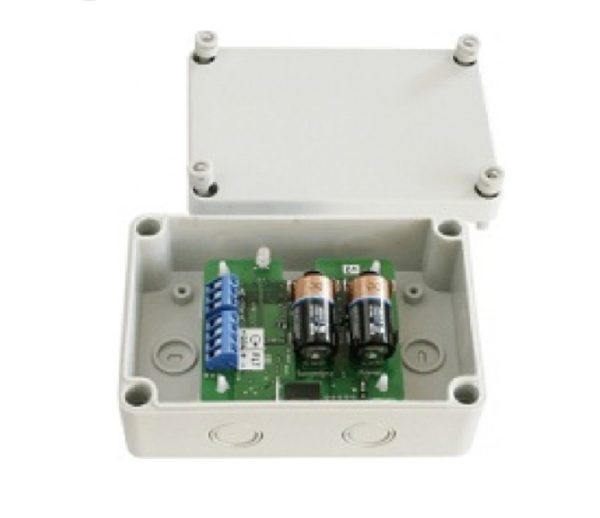

Two batteries are accommodated in the housing of the module. Normally, the module is powered by the main battery. In the event of a failure of the main battery, the secondary battery powers the module. The two-coloured status LED indicates the activated condition and the fault condition of the module. The wireless module is particularly suitable for applications where cabling is impossible or uneconomical. The module is integrated in a white housing and is designed for indoor mounting. Both batteries are included in the delivery

توضیحات

Long battery life of 5 years

High range of radio transmission

During the learning phase, the address can be set in the range 2 to 240 by means of the configuration

Software WirelEx

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Power supply: 2 lithium batteries CR123

(Battery lifespan : approx. 5 years (main battery, in the normal condition

(approx. 2 months (secondary battery, after failure of the main battery

Frequency band : 868MHz

(Radio transmission range : max. 200m (free air

Contact rating relay : output max. 2A at 30VDC

(Output current voltage : output max. 40mA (at 12V

(max. 20mA (at 24V

Ambient temperature : -30°C to +55°C

Protection class : IP65

(Dimensions L × W × D : 135 × ۹۵ × ۵۷ (mm

Colour : light grey, RAL 7035

(Weight : 210g (without batteries
