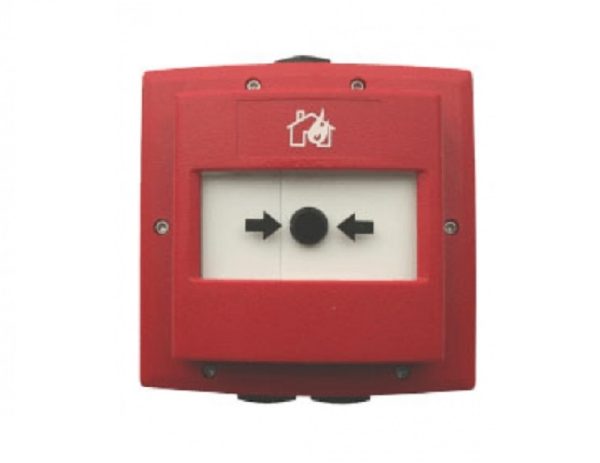

Manual Call Point IP67Red700 FI700MCP67 – 245081

The manual call point according to EN 54-11/A is accommodated in a red plastic housing and is designed for use on the ADM loop with Labor Strauss/700 protocol. Thanks to its dust and water protected design, the manual call point is suitable for use under harsh environmental conditions. The detector is activated by pressing in the plastic pane without breaking it. The pane can be placed again into the idle position with a special key, thereby resetting the detector.

A two-coloured LED indicates the activated condition of the detector in red, the fault condition in yellow and the loop polling in green. The integrated dual-isolator disconnects the loop at short circuit on the loop line

By means of the Programming Unit FI750/PU, the address of the detector can be set in the range 1 to 240. In addition, the programming unit allows the reading-out of parameters, such as the default analogue value or the production date. Furthermore, in case of connection to a compatible fire detection control panel, the detector can also be AUTO-addressed

Operating instructions by symbols (EN 54-11) Activation by pressing in plastic pane without breaking it Plastic pane easy to reset

Installation box with gasket elements and special key included in delivery
