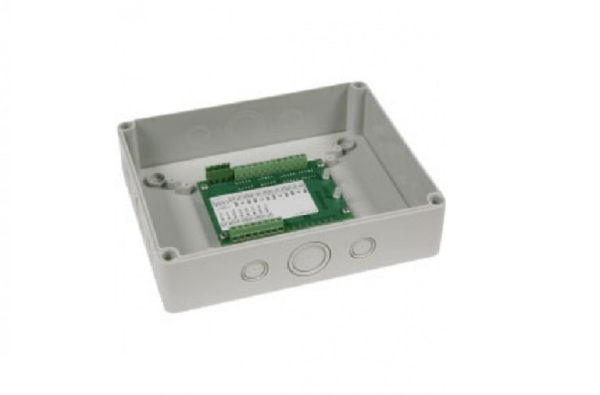

Module 4xIn 2xOut 2xRel700 FI700M4IN2OUT2REL – 249290

Labor Strauss/700 protocol and provides 4 independent line-monitored inputs for the connection of contact detectors, two line-monitored outputs as well as two independent dry relay outputs for the actuation of external devices. With that, various devices such as manual call points, supervising contacts, signaling devices or solenoid valves can be easily integrated into a fire detection system with loop technology. The load that is connected to the monitored outputs is powered by an external power supply.

The module occupies 8 consecutive addresses on the loop. The base address is set in the range 1 to 233 . by means of the Programming Unit FI750/PU. Furthermore, in case of connection to a compatible fire detection control panel, the module can also be AUTO-addressed. The integrated dual-isolator disconnects the loop at short circuit on the loop line

توضیحات

two-coloured status LEDs for the common indication of the conditions of the inputs and outputs

Inputs and monitored outputs are monitored for wire breakage and short circuit

Plastic housing for surface mounting

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

The multiple monitor and control module FI700/M4IN2OUT2REL is integrated into an ADM loop with Operating voltage supplied through loop voltage

(Current consumption at 24V typ. 300μA (normal communication

(Current consumption module LED typ. 6mA (per LED

Contact rating relay output max. 2A at 30VDC

max. 0.5A at 125VAC

(Ambient temperature -30°C to +70°C (no icing

(Relative humidity 5 – 85% (no condensation

Protection class IP65

(Dimensions L × W × H 210 × ۱۷۰ × ۶۶ (mm

Weight 470g
