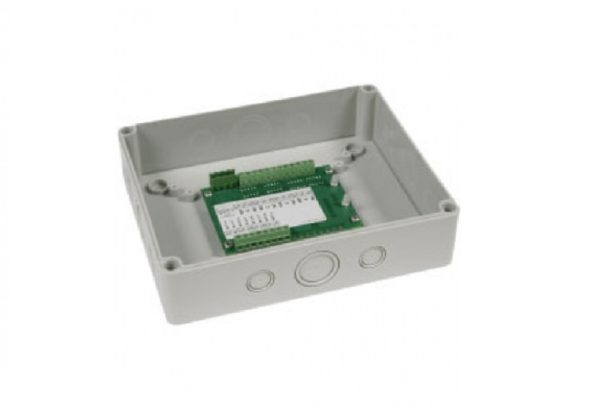

Module 6xIn 2xRel700 FI700M6IN2REL – 249291

The multiple monitor and control module FI700/M6IN2REL is integrated into an ADM loop with Labor Strauss/700 protocol and provides 6 independent line-monitored inputs for the connection of contact detectors as well as two independent dry relay outputs for the actuation of external devices. With that, various devices such as manual call points, supervising contacts, signalling devices or solenoid valves can be easily integrated into a fire detection system with loop technology

The module occupies 8 consecutive addresses on the loop. The base address is set in the range 1 to 233 by means of the Programming Unit FI750/PU. Furthermore, in case of connection to a compatible fire detection control panel, the module can also be AUTO-addressed. The integrated dual-isolator disconnects the loop at short circuit on the loop line

توضیحات

two-coloured status LEDs for the common indication of the conditions of the inputs and outputs

Inputs monitored for wire breakage and short circuit

Plastic housing for surface mounting

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Operating voltage supplied through loop voltage

(Current consumption at 24V typ. 300μA (normal communication

(Current consumption module LED typ. 6mA (per LED

Contact rating relay output max. 2A at 30VDC

max. 0.5A at 125VAC

(Ambient temperature : -30°C to +70°C (no icing

(Relative humidity : 5 – 85% (no condensation

Protection class IP65

(Dimensions L × W × H : 210 × ۱۷۰ × ۶۶ (mm

Weight : 470g
