SounderIP66700ISMRed FI700WM66SOUR – 355189

The loop sounder FI700/WM66/SOUR is activated and supplied via the ADM loop with Labor Strauss/700 protocol. Depending on the parameter setup of the fire detection control panel and the system condition, the panel can activate one of three tones. If several sounders are actuated in parallel, they are synchronised by the fire detection control panel to generate a uniform warning tone. The integrated dual-isolator disconnects the loop at short circuit on the loop line

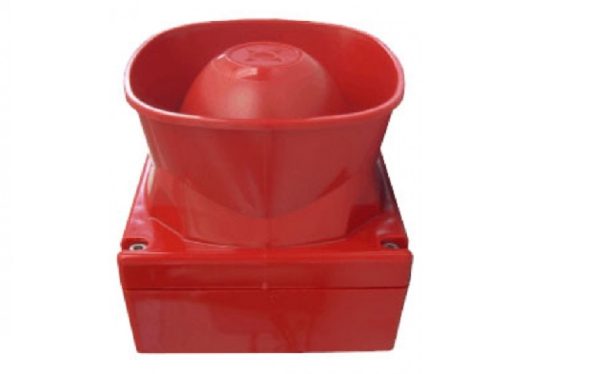

The sounder is integrated in a red plastic housing, and thanks to its dust and water protected design with protection class IP66, it is suitable for harsh environmental conditions

Tone 1: alternating tone 650Hz for 250ms, 990Hz for 250ms

Tone 2: continuous tone 990Hz

(Tone 3: interrupted tone 990Hz (0.5s ON, 0.5s OFF

Low power consumption Adjustable sound level

Address can be set in the range 1 to 240 by means of Programming Unit FI700/PU
