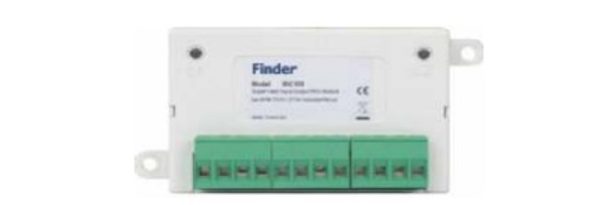

FF MC200 Intelligent Addressed Output Module

Technical Specifications
Product Code FF Mc200
Current (Standby) 120μA
Current (LED@24v) 6mA
Operating Voltage 15-40VDC
Switching Relay 2A @ 30VDC
Humidity %95RH
Operating Temp. -30ºC+70ºC
Storage Temp. -40ºC+70ºC
Protection Class IP 40
Standarts EN 54-18
EN 54-17

خصوصیت و ویژگی ها

Ÿ Provides high reliability and fault finding
Ÿ Self-short-circuit isolator
Ÿ ۱ output contact
Ÿ Full digital protocol
Ÿ Auto-addressable (Control Panelsupported).
Ÿ Line monitoring (27 Kohm)
Ÿ Digital double address control
