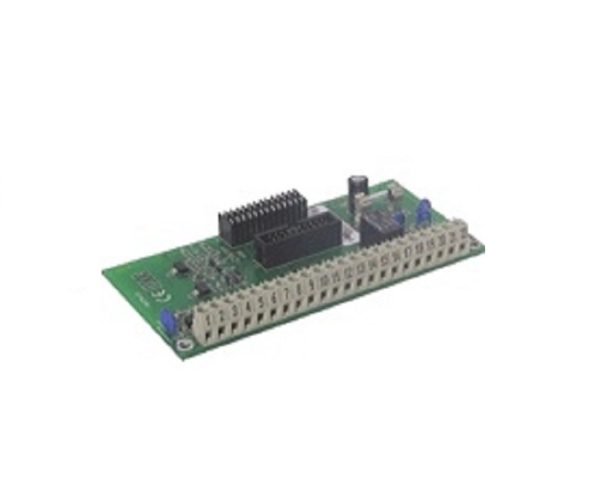

The Fire Brigade Interface FWI016-1 allows for the connection of two independent transmitting devices for direct interconnection to a designated alarm respondent (e.g., the fire brigade) as well as the connection of a country-specific fire brigade control unit to Fire Detection Control Panels Series BC016
relay output with dry changeover contact
line-monitored output with selectable monitoring current
۸ inputs and 7 outputs, freely parameterisable, for the connection of a country-specific fire brigade control unit and other devices
All inputs and outputs are available on screw terminals or flat cable connector
Current consumption : at 24V typ. 4mA
Switching power : per contact 60V/1A/30W
Contact life : 3 × ۱۰۵
Ambient temperature : -5°C to +50°C
(Dimensions L × W × H : 130 × ۶۵ × ۱۵ (mm
Weight : 70g
