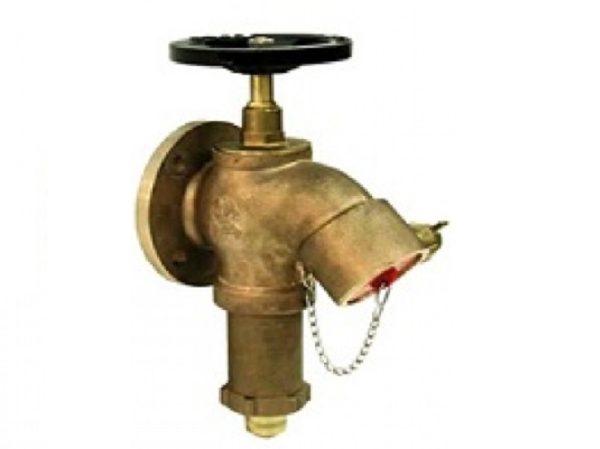

High Pressure Regulating Hydrant Valves

Compact and elegant design with excellent flow characteristics

High quality casting finishes

Primary shut-off by rubber to metal and a secondary metal to metal seating

Type: High Pressure Regulating globe pattern hydrant valves

Inlet: screw or flange

Configurations: “Bib-Nose” patterns

Inlet: 65 mm dia. Male BSPT / 65 mm dia BS4504 PN16 flat-face flange

Outlet: 65 mm Screw or Flange

Standard: BS5041 : Part 1 : 1987 and generally to BS5154 : 1991 standards

Test Pressure: 18 Bar
