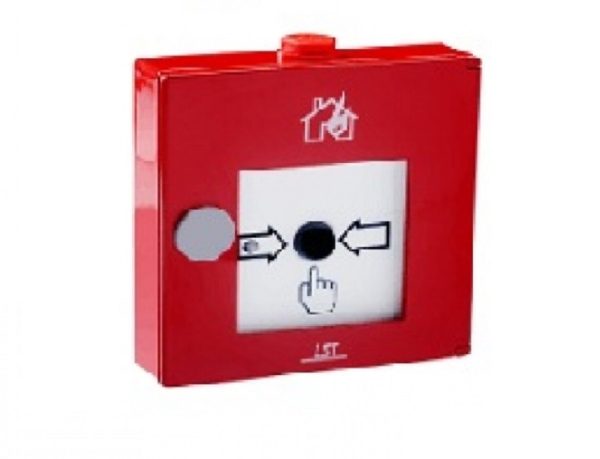

۲۴۵۳۰۲ – Manual Call Point/Red/Conventional HFM/3/11/02

The universal manual call point according to EN 54-11/B is accommodated in a red aluminium die-cast housing and is designed for application in addressable conventional technology

توضیحات

Robust aluminium die-cast housing with a door aperture angle of more than 180°

(Operating instructions by means of symbols (EN 54-11

Optical activation indication by means of LED

Latching push button

Easy to replace standardised glass plate

(Detector housing can be opened with key SCHL-HFM/HM (not included

Individual detector addressing by connecting an optional address module

Plenty of room for cabling

Increasing the protection class to IP54 by using the optional Protection Kit for Manual Call Point

HFM/HM-ZS-IP54

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Operating voltage : supplied through detector line voltage

(Ambient temperature : -20°C to +60°C (continuous operation

(۲۵°C to +70°C (max. 12 hours

Protection class : IP43

(Dimensions W × H × D : 125 × ۱۲۵ × ۳۴ (mm

Colour : red, RAL 3000

Weight : 400g

Approvals : VdS G202034
