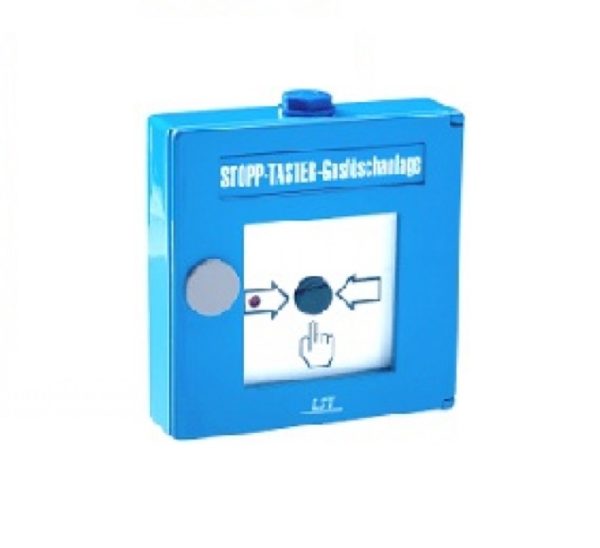

245417 – Manual Call Point/Blue/Conv/Stopp HM/5/11/18/02

The Manual Call Point HM/5/11/18/02 operates as electrical emergency hold device for gas extinguishing systems and is designed for application in addressable conventional technology. The manual call point is accommodated in a blue aluminium die-cast housing and is tested in accordance with the standards EN54-11/B and EN 12094-3

Robust aluminium die-cast housing with a door aperture angle of more than 180°

Inscription field ‘STOPP-TASTER-Gaslöschanlage’, exchangeable

Optical indication of activation by LED indicator

(Push button (non-latching

Standardised glass pane, easy to replace

(Detector housing can be opened with key SCHL-HFM/HM (not included

Individual detector identification through connection of an optional address module

Plenty of space for cabling

Increase of protection class to IP54 via optional Protection Kit for Manual Call Points

HFM/HM-ZS-IP54
