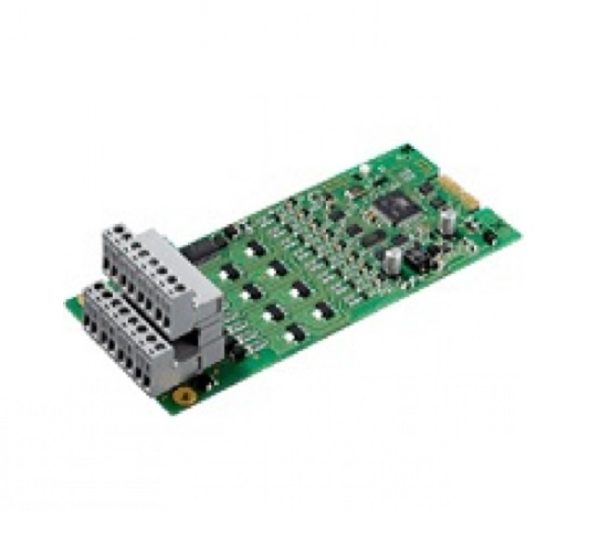

۲۱۱۱۱۲ – Detector Interface GIF608-1

The Conventional Detector Interface GIF608-1 supports 8 detector lines in addressable conventional technology in Fire Detection Control Panels Series BC600.  Each detector line can be assigned either to a logic detector zone or to a zone element. In this way, it is also possible to unite several detector lines in one detector zone, hence allowing to operate them together. The end-of-line element – resistor or capacitor – can also be parameterised. If necessary, detector lines can also be configured as inputs without monitoring. In addition, the Conventional Detector Interface GIF608-1 is equipped with 8 freely parameterisable opencollector outputs for general control tasks

توضیحات

Independent microprocessor to ensure the alarming capability of every detector even at system failure of the control panel

Individual detector identification for up to 64 addresses per detector line in conjunction with optional address modules

Detector lines monitored for wire breakage, short circuit and earth fault

All inputs and outputs accessible via pluggable screw terminals or flat cable connector

خصوصیت و ویژگی ها

خصوصیت و ویژگی ها

Current consumption : at 24V typ. 1.8mA per line (terminated by CEOL

(typ. 4.9mA per line (terminated by REOL

Line voltage : typ. 20.0V

(Line current : typ. 3.7mA (with 5.6kOhm EOL

End-of-line resistance : 5.6kOhm / 3.3kOhm / 47μF

Line resistance : max. 50 Ohm per core

Ambient temperature : -20°C to +60°C

(Dimensions L × W × H : 160 × ۶۵ × ۳۵ (mm

Weight : 80g
